Key Features:
-
Dual Control: Supports both Zigbee 3.0 and 2.4GHz RF for flexible wireless control
-

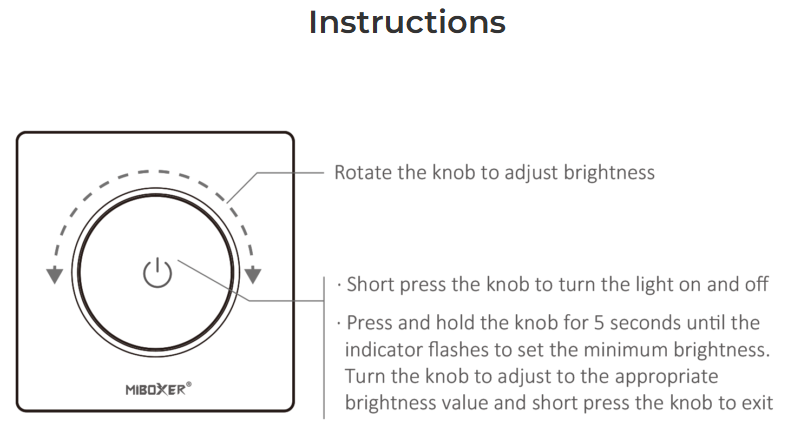

Rotary Dimming: Smooth 0–100% brightness adjustment with physical knob
-
Wide Compatibility: Works with leading Zigbee hubs like Philips Hue, Tuya, SmartThings
-
Trailing-Edge Dimming: Flicker-free performance, suitable for LED, CFL, and incandescent lights
-
Overload Protection: Built-in overheat and overload safety features
-
Easy Installation: Fits standard EU single-gang wall boxes
-
Smart Automation Ready: Supports scene control, scheduling, and grouping
Applications:
-
Residential smart lighting systems
-
Office and commercial lighting control
-
Hotel and hospitality lighting scenes
-
Hallways, bedrooms, living rooms
-
Energy-efficient lighting upgrades in smart homes
Technical Specifications:
| Specification | Details |
|---|---|
| Model | TRI-K1ZR |
| Input Voltage | 100–240V AC, 50/60Hz |
| Max Output Power | 150W @ 110V / 300W @ 220V |
| Max Output Current | 1.36A |
| Dimming Range | 0–100% (flicker-free) |
| Dimming Method | Trailing-edge (Triac phase-cut) |
| Wireless Protocols | Zigbee 3.0 + 2.4GHz RF |
| Control Distance | Zigbee: up to 50m (open space) |
| Operating Temperature | –10°C to +40°C |
| Installation | EU standard wall box (86x86mm) |
| Material | Flame-retardant PC |
| Protection Features | Overheat and overload protection |
| Enclosure Rating | IP20 (indoor use only) |
| Certifications | CE, EMC, LVD, RED |
Manual Download:
https://cdn.shopify.com/s/files/1/0655/1627/3863/files/tri-k1zr_en.pdf?v=1753459336
