Key Features:
-
5-in-1 Output Configuration: Supports DIM, CCT, RGB, RGBW, and RGB+CCT lighting modes for flexible applications.
-

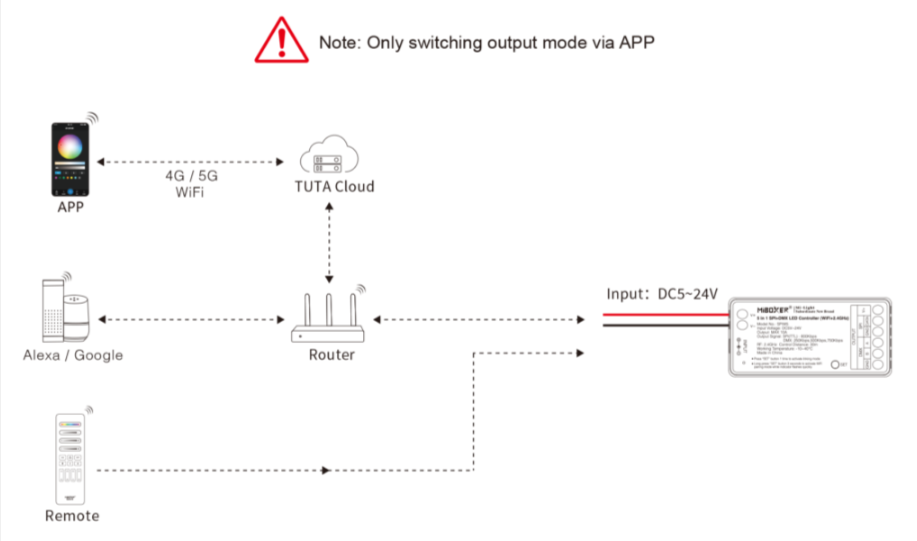

Dual Wireless Control: Compatible with 2.4GHz RF remotes and WiFi control via the MiBOXER Smart App.
-
SPI + DMX512 Dual Output: Controls both addressable digital LED strips and DMX512-compatible fixtures.
-
Wide SPI IC Compatibility: Supports popular digital ICs such as WS2811, SK6812, TM1814, and others.
-

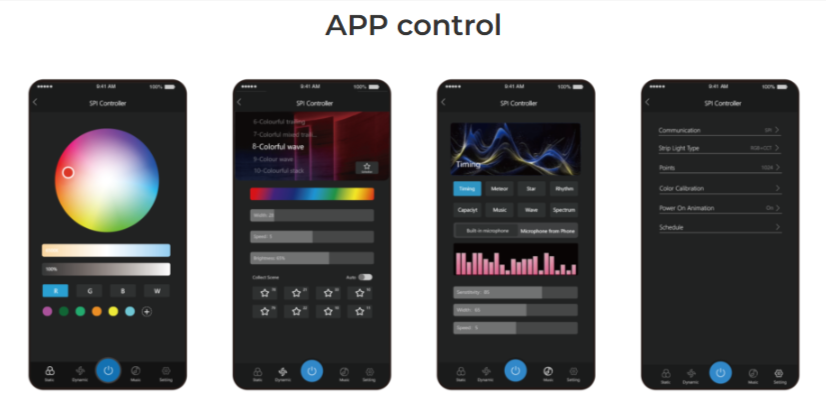

App & Voice Control: Full control through WiFi (requires router access), supports scene setting and automation; voice control available via Amazon Alexa/Google Assistant (via gateway).
-
Multi-Zone & Group Sync: Enables grouping and synchronized effects across multiple controllers.
-
Dynamic Effects & Scenes: Built-in animated modes with adjustable speed, brightness, and color transitions.
Applications:
-
Smart Home LED Systems: Ideal for residential lighting that integrates WiFi-based app and voice control.
-
Professional DMX Installations: Suitable for clubs, theaters, and exhibitions using DMX protocol.
-
Addressable SPI Lighting Projects: Perfect for creative pixel strip installations and ambient lighting.
-
Commercial Spaces: Use in hotels, restaurants, and lobbies with customized lighting scenes.
-
Architectural & Landscape Lighting: Enables versatile and programmable effects in modern lighting design.

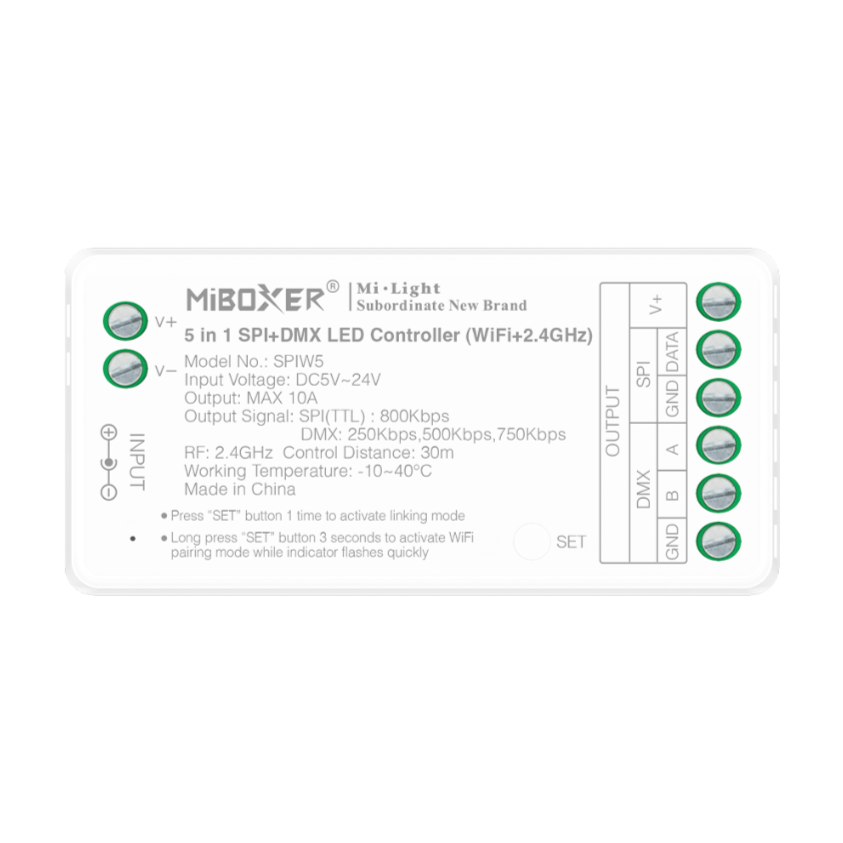

Technical Specifications:
| Specification | Details |
|---|---|
| Model | SPIW5 |
| Product Type | 5 in 1 SPI + DMX LED Controller |
| Output Modes | DIM / CCT / RGB / RGBW / RGB+CCT |
| Control Technologies | 2.4GHz RF Wireless, WiFi (via MiBOXER Smart App) |
| Wireless Control Distance | Up to 30 meters (2.4GHz RF, open area) |
| DMX Protocol | DMX512 (3-pin standard output) |
| SPI Signal Type | TTL level (for digital LED ICs) |
| Compatible SPI ICs | WS2811, WS2812, SK6812, TM1814, UCS1903, and more |
| Input Voltage | DC 12V–24V |
| Max Output Power | 6A × 3CH Max, Total Output Max 18A |
| Control Interface | RF Remote, WiFi App (via router), or DMX Console |
| App Support | MiBOXER Smart App (iOS & Android) |
| Voice Control | Supported (via third-party gateway like WL-Box1) |
| Zone Support | Multi-zone (with compatible remote systems) |
| Dynamic Lighting Modes | Yes (with adjustable speed/brightness) |
| Operating Temperature | -20°C to +60°C |
| Material | ABS + PC |
| Dimensions | 124 × 38 × 23 mm |
| Weight | ~85g |
Manual Download:
https://cdn.shopify.com/s/files/1/0655/1627/3863/files/spiw5_en.pdf?v=1747851200
