Key Features:
-
5-in-1 Output Modes: Supports RGB, RGBW, RGB+CCT, CCT, and DIM configurations for versatile lighting control.
-

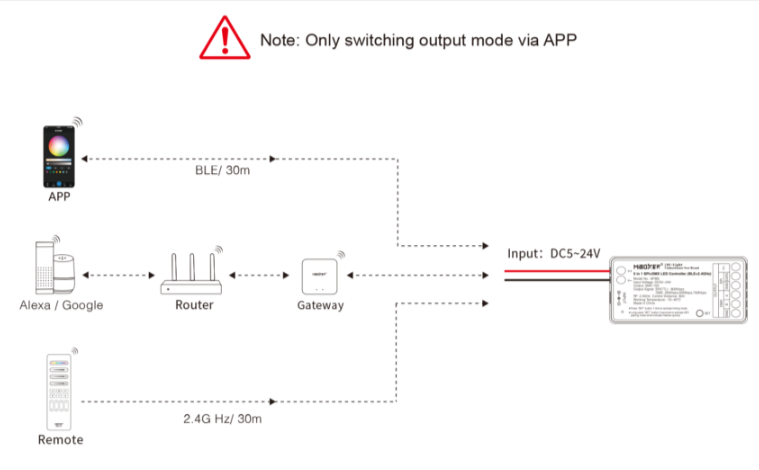

Dual Wireless Control: Compatible with both 2.4GHz RF remotes and Bluetooth via the MiBOXER Smart App.
-
SPI + DMX512 Protocol Support: Controls digital pixel LEDs (SPI) and professional lighting (DMX512) systems.
-
Multi-IC Compatibility: Works with a wide range of SPI IC types (WS2811, SK6812, TM1814, etc.).
-
Dynamic Effects & Scene Modes: Built-in modes for vivid lighting animations and custom scenes.
-
Group & Zone Control: Supports synchronization and grouping across multiple controllers.
-

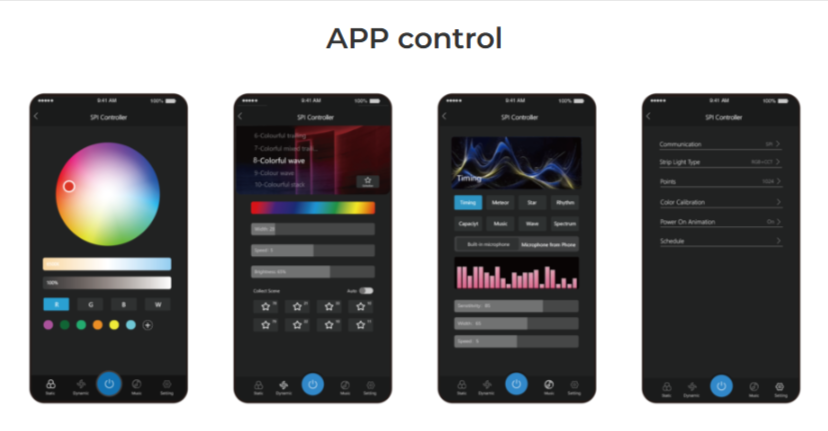

App & Voice Control: Supports smartphone control via BLE and voice assistants (when used with compatible gateways).
Applications:
-
Pixel LED Strip Projects: Ideal for architectural, decorative, and ambient lighting with SPI LEDs.
-
Stage & Event Lighting: Integrates with DMX consoles for dynamic stage effects and synchronized shows.
-
Smart Home Installations: Enables seamless app and voice control for complex lighting systems.
-
Commercial Spaces: Suited for shopping malls, bars, and restaurants requiring animated or multizone lighting.
-
Custom Installations: Perfect for professional lighting designers integrating DMX and SPI systems into one controller.
Technical Specifications:
| Specification | Details |
|---|---|

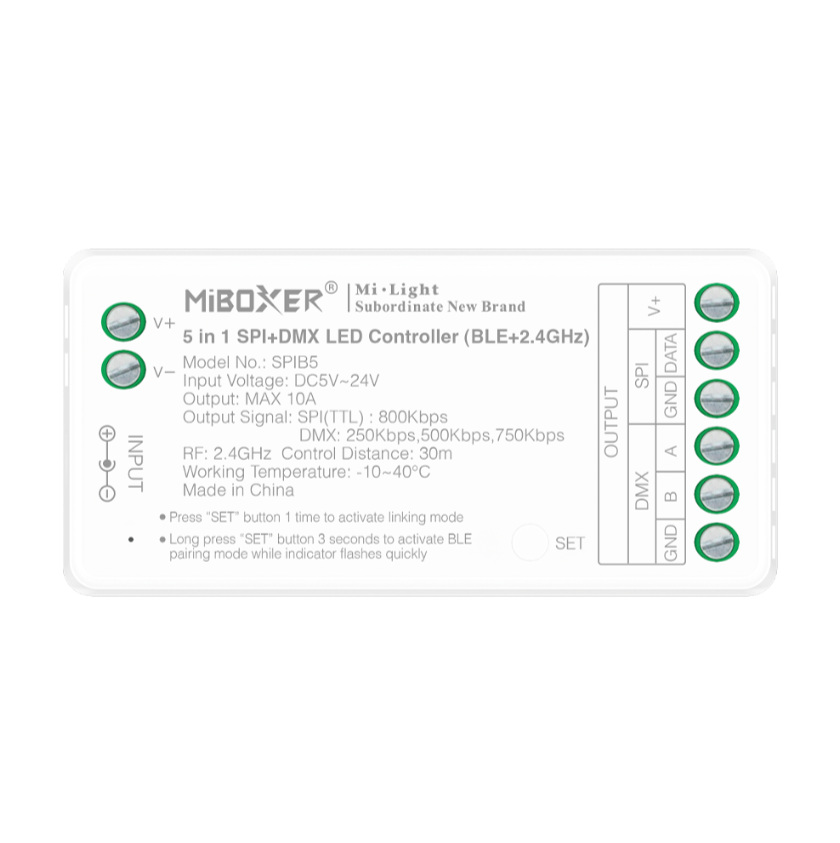

| Model | SPIB5 |

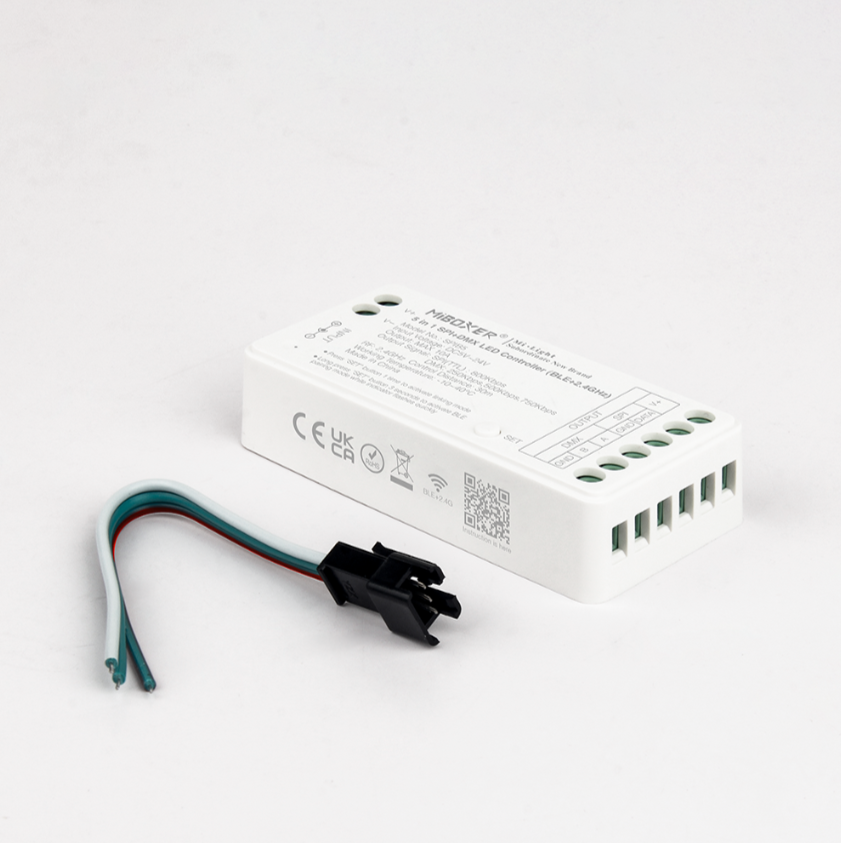

| Product Type | 5 in 1 SPI + DMX LED Controller |
| Output Modes | DIM / CCT / RGB / RGBW / RGB+CCT |
| Control Technologies | 2.4GHz RF, Bluetooth (BLE), DMX512, SPI |
| Wireless Control Distance | Up to 30 meters (2.4GHz RF, open area) |
| DMX Protocol | DMX512 (standard 3-pin output) |
| SPI Signal Type | TTL level (compatible with various digital ICs) |
| Compatible SPI ICs | WS2811, WS2812, SK6812, TM1814, UCS1903, and more |
| Input Voltage | DC 12V–24V |
| Max Output Power | 6A × 3CH Max, Total Output Max 18A |
| Control Interface | Via RF Remote, BLE App (MiBOXER Smart), or DMX512 console |
| Zone Support | Multiple zones (up to 8 zones with compatible remotes) |
| Dynamic Modes | Multiple built-in lighting effects |
| Voice Control | Supported via gateway (e.g., WL-Box1) |
| Operating Temperature | -20°C to +60°C |
| Material | ABS + PC |
| Dimensions | 124 × 38 × 23 mm |
| Weight | ~85g |
Manual Download:
https://cdn.shopify.com/s/files/1/0655/1627/3863/files/tri-pz_en.pdf?v=1747851295
