Key Features:
-
2.4GHz RF Wireless Control: Provides stable, interference-resistant signal with up to 30 meters range.
-

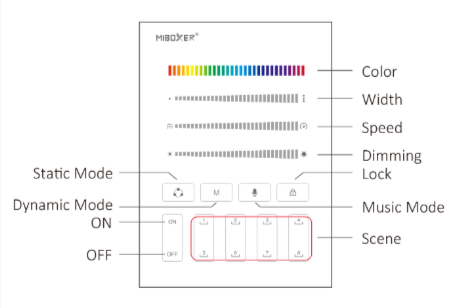

High-Precision Touch Panel: Glass touch interface with responsive color and brightness adjustment.
-
Supports Multiple SPI IC Types: Compatible with WS2811, SK6812, TM1814, and similar digital LED ICs.
-
16 Million Colors & Dynamic Effects: Full RGB customization and dynamic modes for animated lighting.
-
Multi-Zone Control: Supports up to 10 remote-to-controller pairings for synchronized effects.
-
Wall-Mount Design: EU/US standard size fits seamlessly into interior spaces with a sleek finish.
Applications:
-
Architectural & Accent Lighting: Perfect for dynamic control of SPI LED pixel strips in homes or buildings.
-
Home Theaters & Entertainment Areas: Adds immersive lighting effects to multimedia environments.
-
Retail & Hospitality Spaces: Custom lighting control for atmosphere in shops, bars, and lounges.
-
Exhibition & Event Lighting: Used in interactive or animated lighting displays.
-
Smart Home Projects: Integrates into wireless lighting systems for modern, touch-based lighting control.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | B9 |
| Product Type | SPI Panel Remote Controller |
| Control Technology | 2.4GHz RF Wireless |
| Control Distance | Up to 30 meters (open area) |
| Signal Type | SPI (TTL level signal for pixel LED strips) |
| Compatible IC Types | WS2811, WS2812, SK6812, TM1814, etc. |
| Zones Controlled | 1 Zone |
| Color Options | 16 Million Colors (RGB spectrum) |
| Lighting Modes | Multiple Dynamic Effects + Customizable Settings |
| Control Interface | Capacitive Touch Panel (glass surface) |
| Power Supply | 2 × AAA batteries (not included) |
| Standby Power Consumption | <10µA |
| Mounting Type | Wall-mounted (EU/US standard 86-type box) |
| Material | ABS + Tempered Glass |
| Operating Temperature | -10°C to +40°C |
| Dimensions | 86 × 86 × 20 mm |
| Weight | ~120g (without batteries) |
