Key Features:
-
36W linear magnetic flood light in 4000K (neutral white) for uniform, natural illumination
-
Wide beam distribution for wall-wash and general ambient lighting
-
Tool-free magnetic snap-in mounting; easy repositioning along the track
-
Low-glare diffuser for comfortable visual performance (office-friendly)
-
Slim black aluminum housing with efficient passive cooling
-
Works with 36V magnetic track ecosystems (confirm track type/dimming)
Applications:
-
Retail aisles, perimeter washes, and merchandise walls
-
Galleries, museums, and exhibition backdrops
-
Offices, corridors, reception areas, and meeting rooms
-
Hotels, restaurants, and lounge ambient lighting
-
Showrooms and trade-show booths needing flexible layouts
Technical Specifications:
| Specification | Details |
|---|---|
| Model | AS-F20-090-36G |
| Type | Magnetic linear flood light (track module) |
| Power | 36W |
| CCT | 4000K (Neutral White) |
| Luminous Flux* | ~3,600–4,500 lm (typical) |
| Efficacy* | ~100–125 lm/W |
| CRI | ≥80 (≥90 optional if available) |
| Beam | Wide, ~110–120° (flood) |
| Input | DC 48V (magnetic track system) |
| Dimming | Via system driver/controller (e.g., PWM/0–10V/DALI per track) |
| Housing/Finish | Aluminum, black |
| Optics | Opal/micro-prismatic diffuser (low glare) |
| IP Rating | IP20 (indoor) |
| Lifespan* | ≥50,000 h (L70, typical) |
| Operating Temp* | −20°C to +45°C |
| Mounting | Magnetic snap-in to 48V track (surface/recessed per system) |

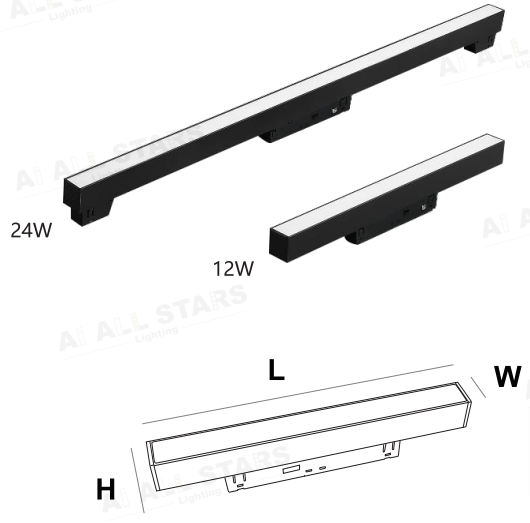

| Dimensions* | ~900 × 20 × 40 mm (L × W × H) |
| Weight* | ~0.6–1.0 kg |
| Compliance* | CE/RoHS (region dependent) |
| Warranty* | 2–3 years (supplier dependent) |
