About this Item:
- 48V Constant-Voltage, 300W Output – delivers stable 48V DC up to 6.25A for LED strips, bars, linear fixtures, signage, and magnetic track lights.
- Wide AC Input 110–265V, 50/60Hz – compatible with standard mains worldwide; ideal for commercial or residential installs.
- Indoor IP20, Fanless Metal Housing – honeycomb-vented chassis for efficient heat dissipation and quiet, reliable operation.
- Built-In Protections – short-circuit, over-voltage, and over-temperature safeguards help protect lights and the driver.
- Easy Screw-Terminal Wiring – compact form factor for cabinets and control boxes; non-dimmable by TRIAC/phase-cut (use a 48V PWM/controller on the DC side for dimming).

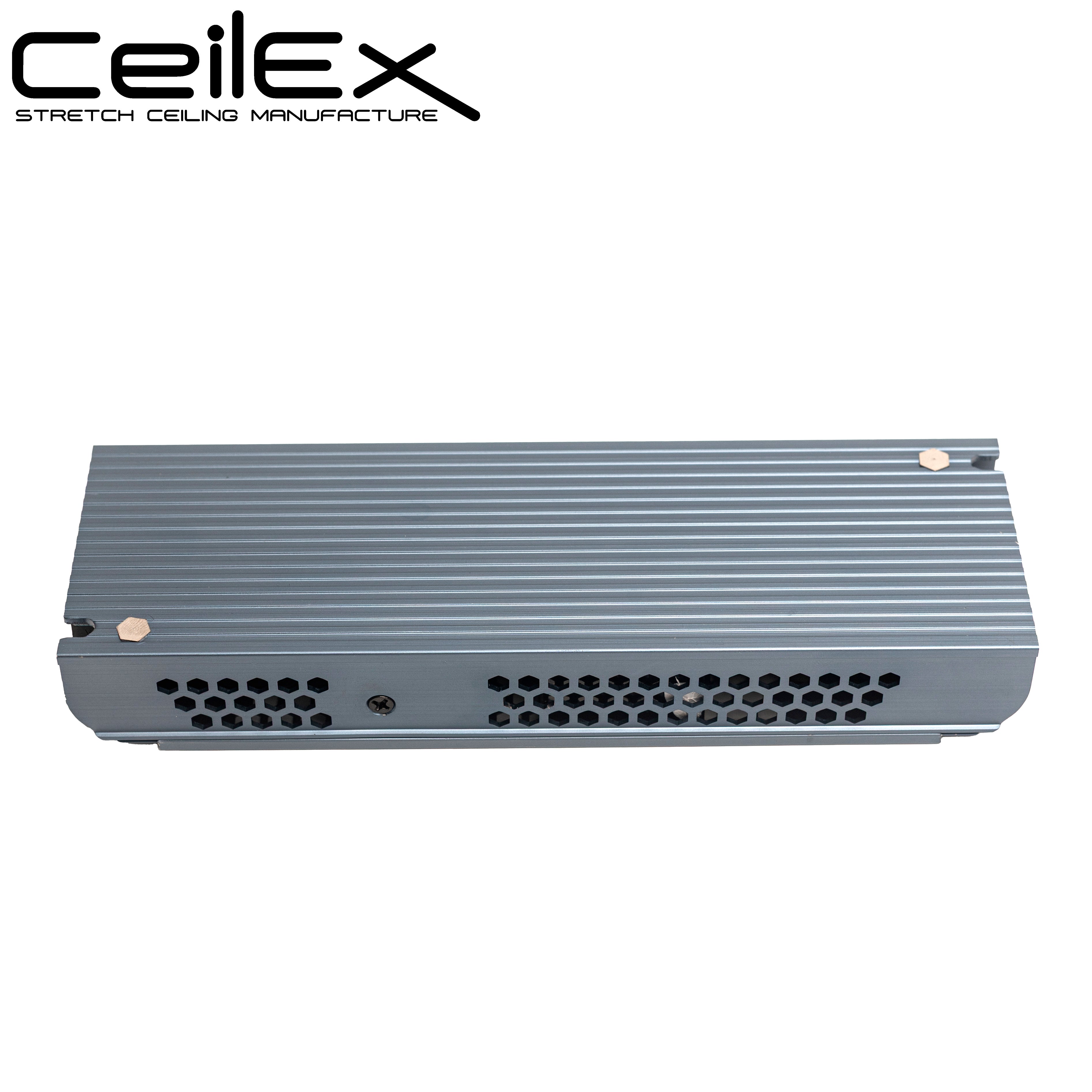

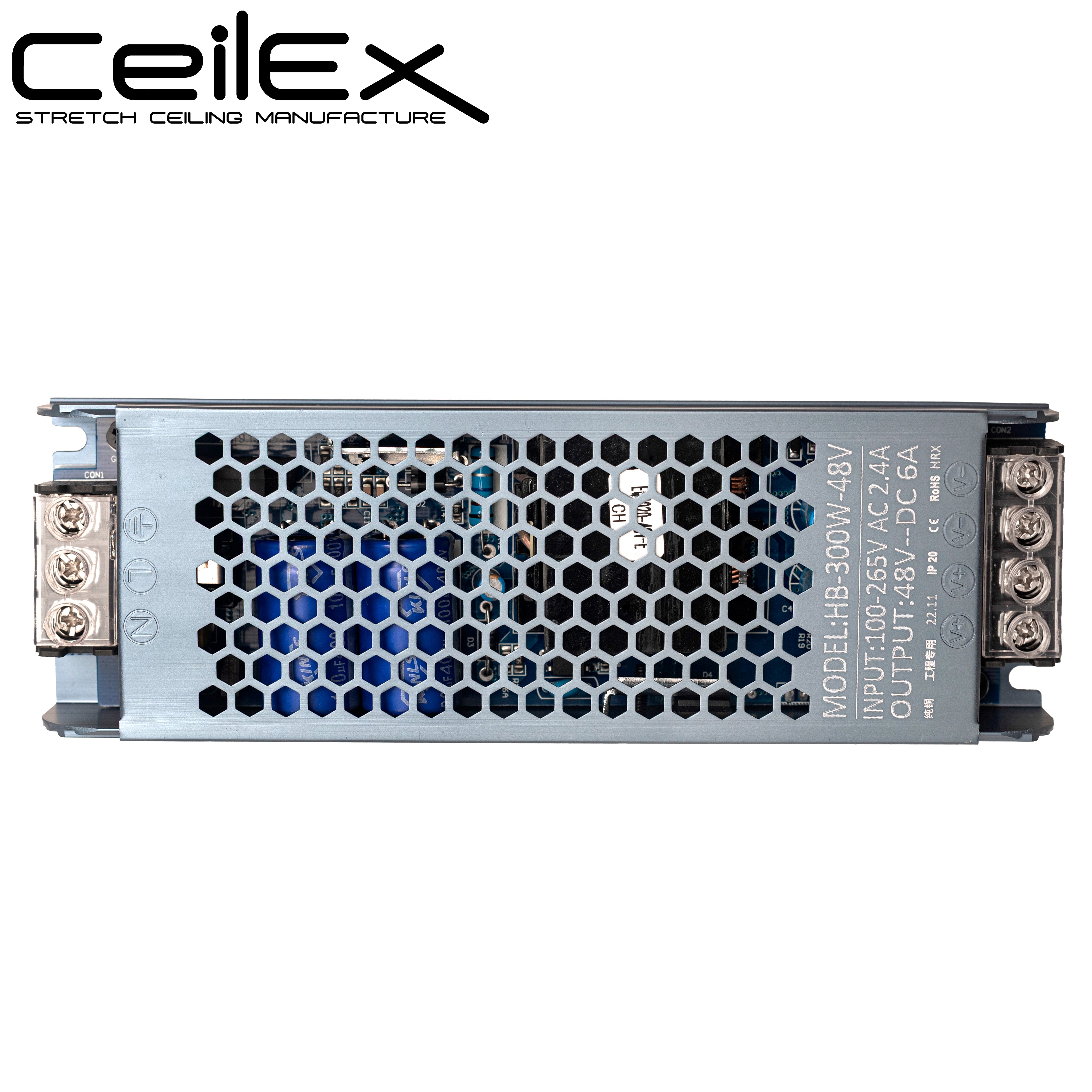

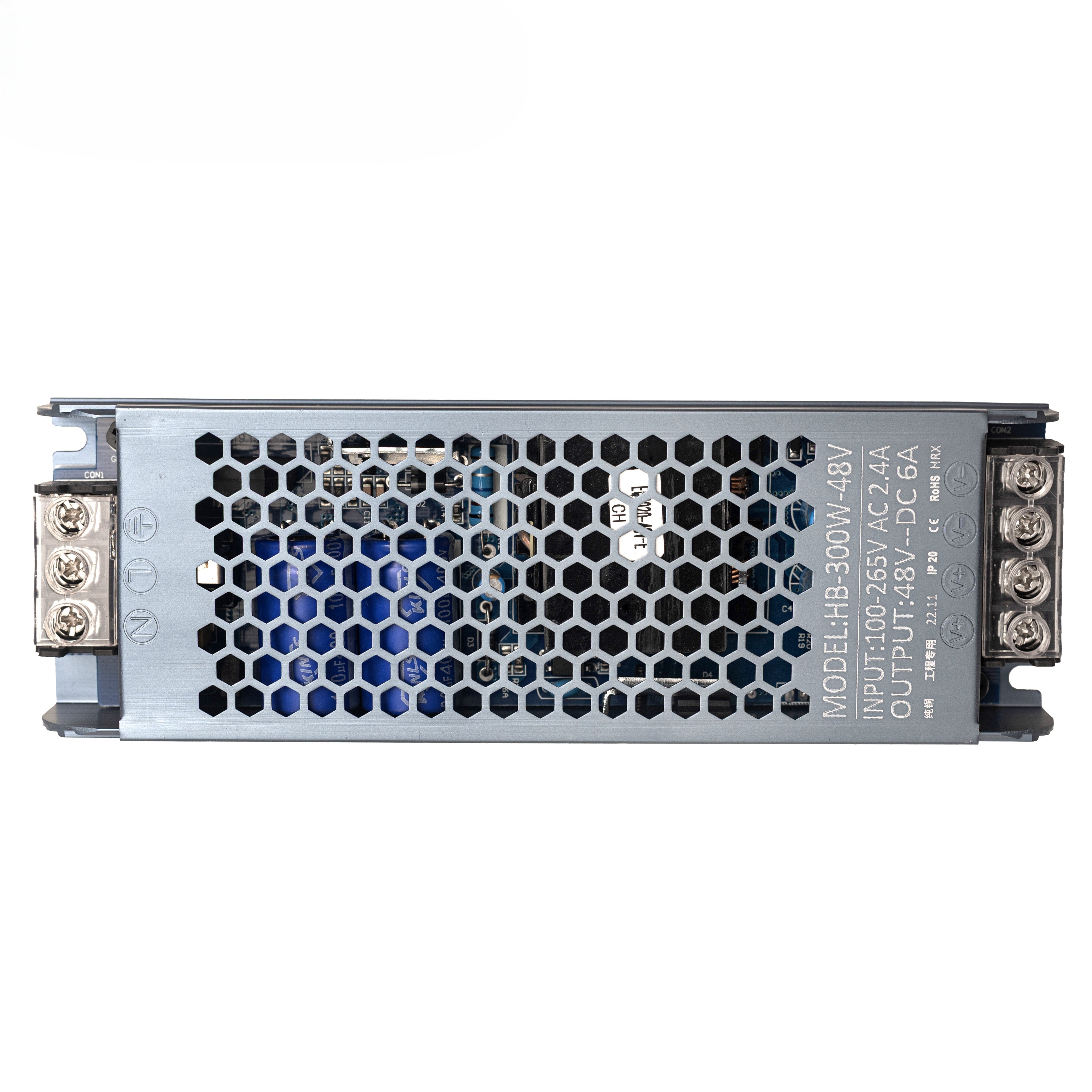

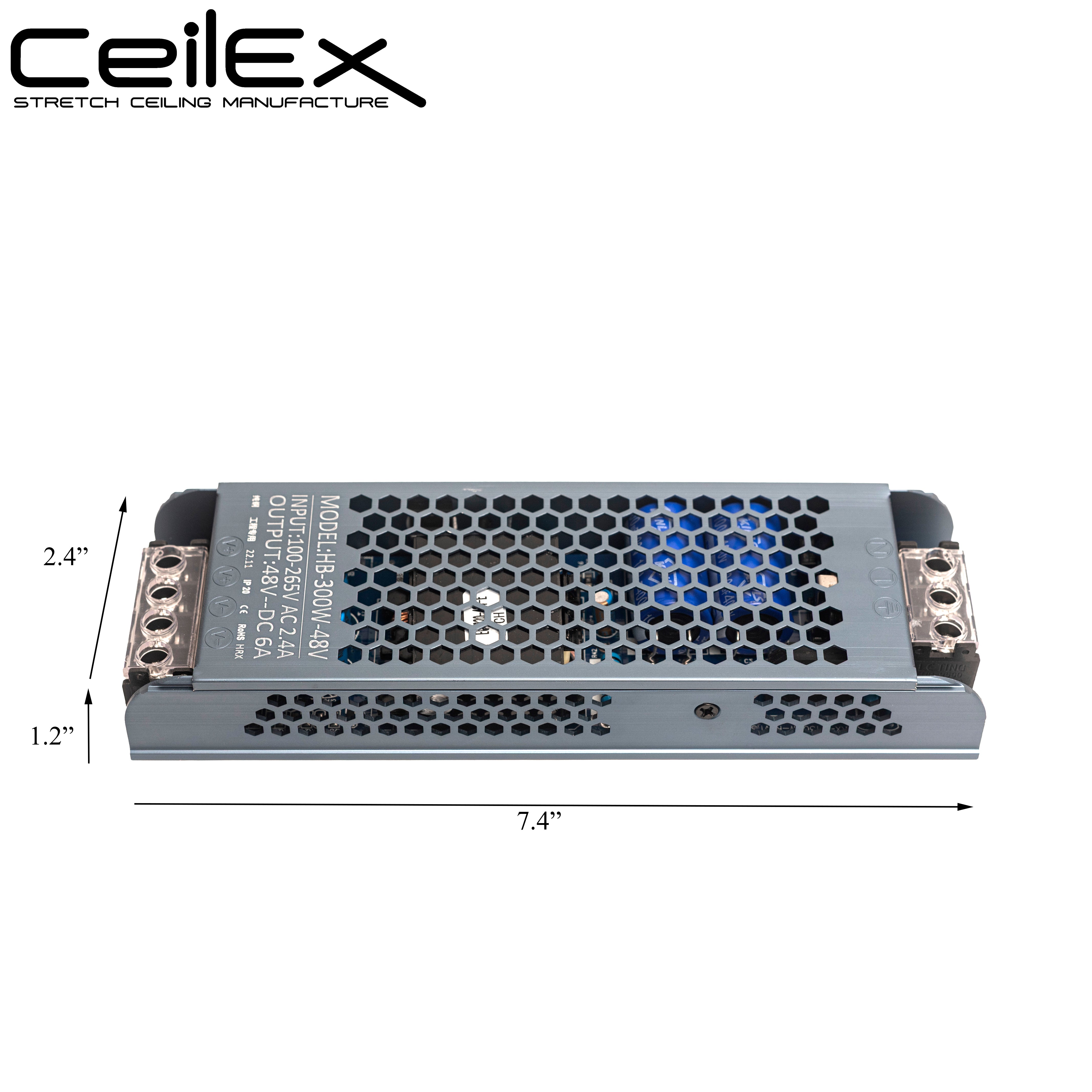

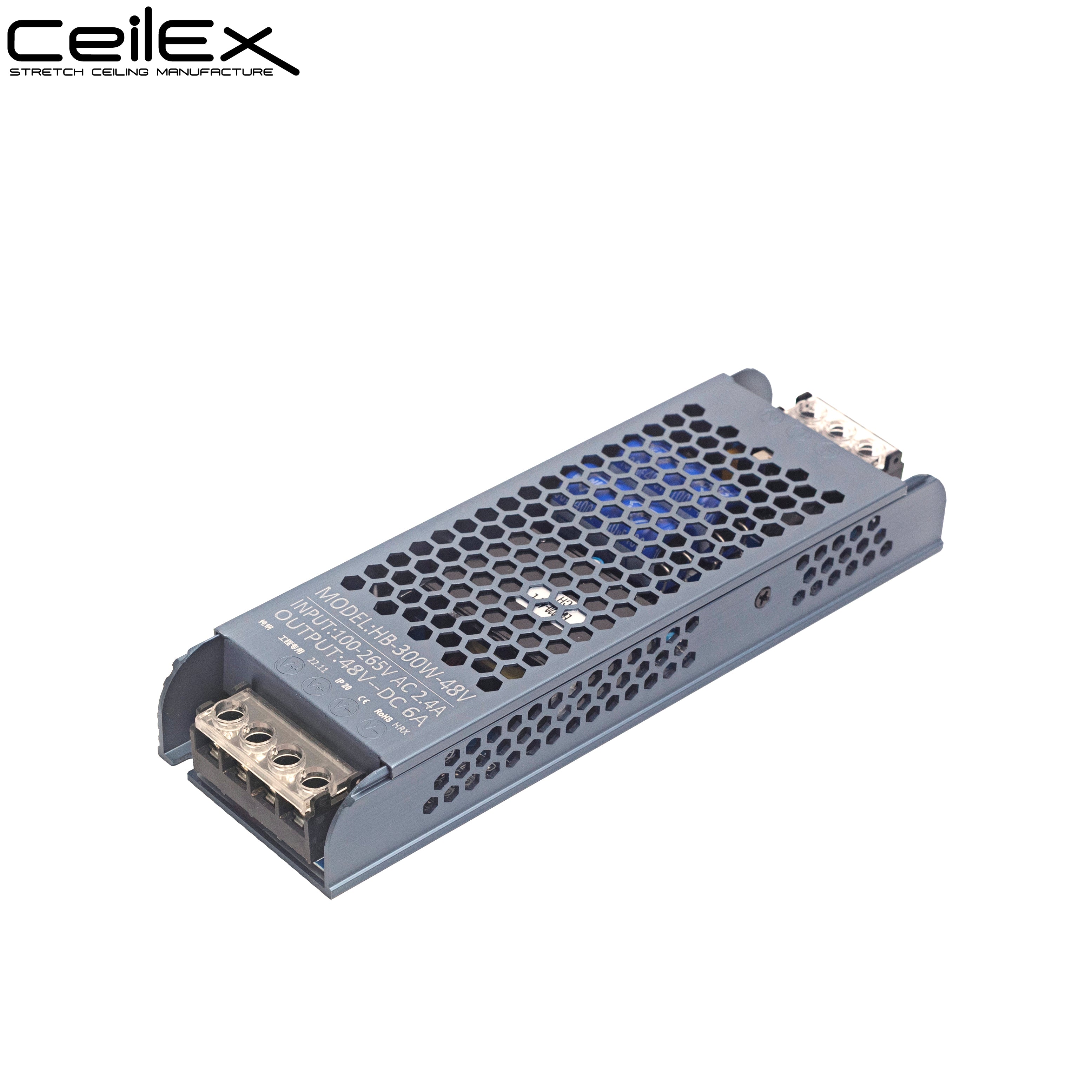

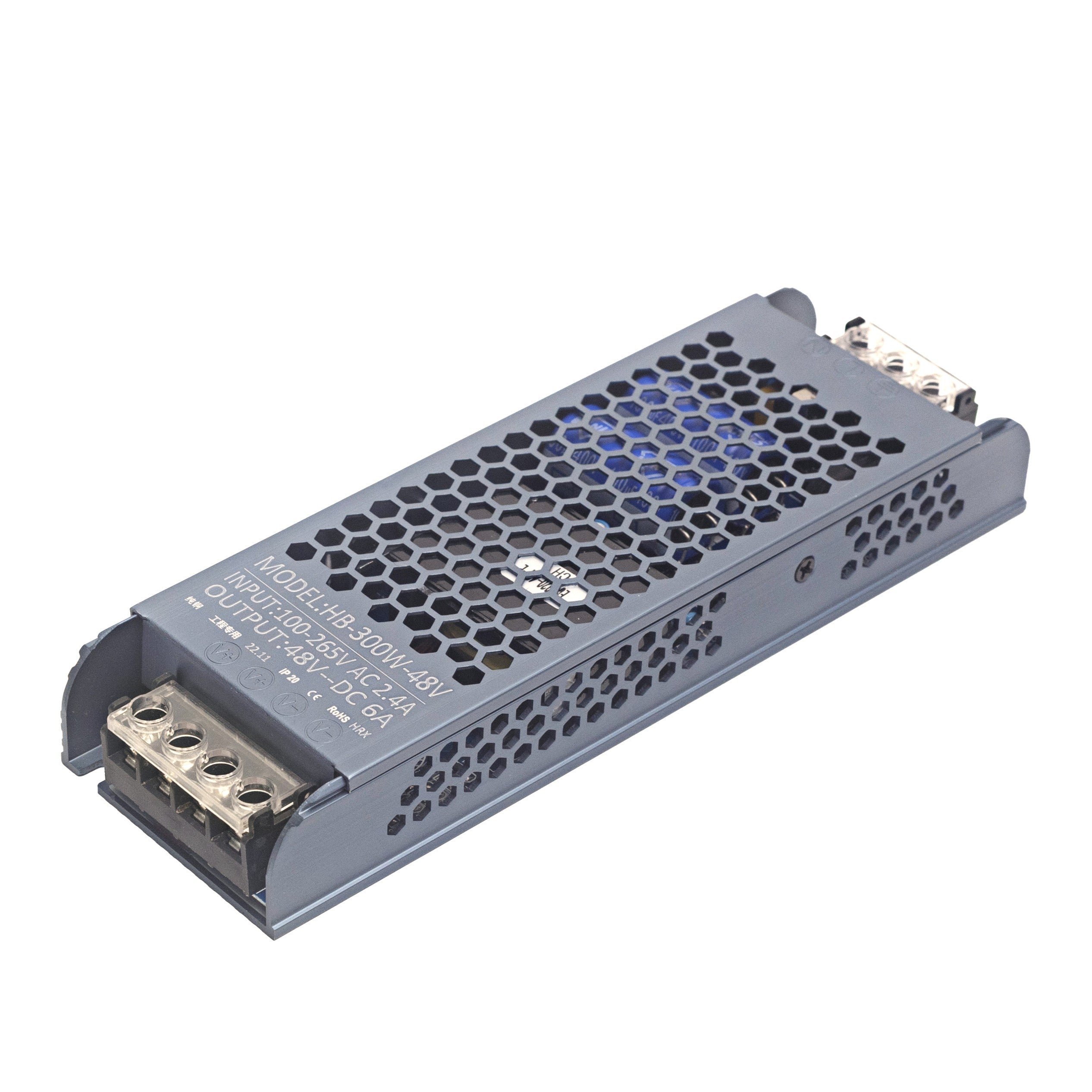

The CEILEX 48V 300W LED Driver is a constant-voltage power supply designed for dependable operation of 48-volt LED lighting systems. Delivering up to 300 watts (48V DC, max 6.25A), it features a rugged metal, honeycomb-vented chassis for efficient heat dissipation and long service life. A wide 110–265VAC, 50/60Hz input makes it suitable for most mains power environments, while integrated protection circuits guard against short-circuit, over-voltage, and over-temperature conditions. Screw-terminal connections simplify wiring, and the slim, IP20 non-waterproof form factor is ideal for dry, indoor installations such as LED strips, linear fixtures, magnetic track lights, signage, and backlit displays. Note: not for use with TRIAC/phase-cut wall dimmers; for dimming, use a compatible low-voltage (48V) PWM/controller on the DC side.
