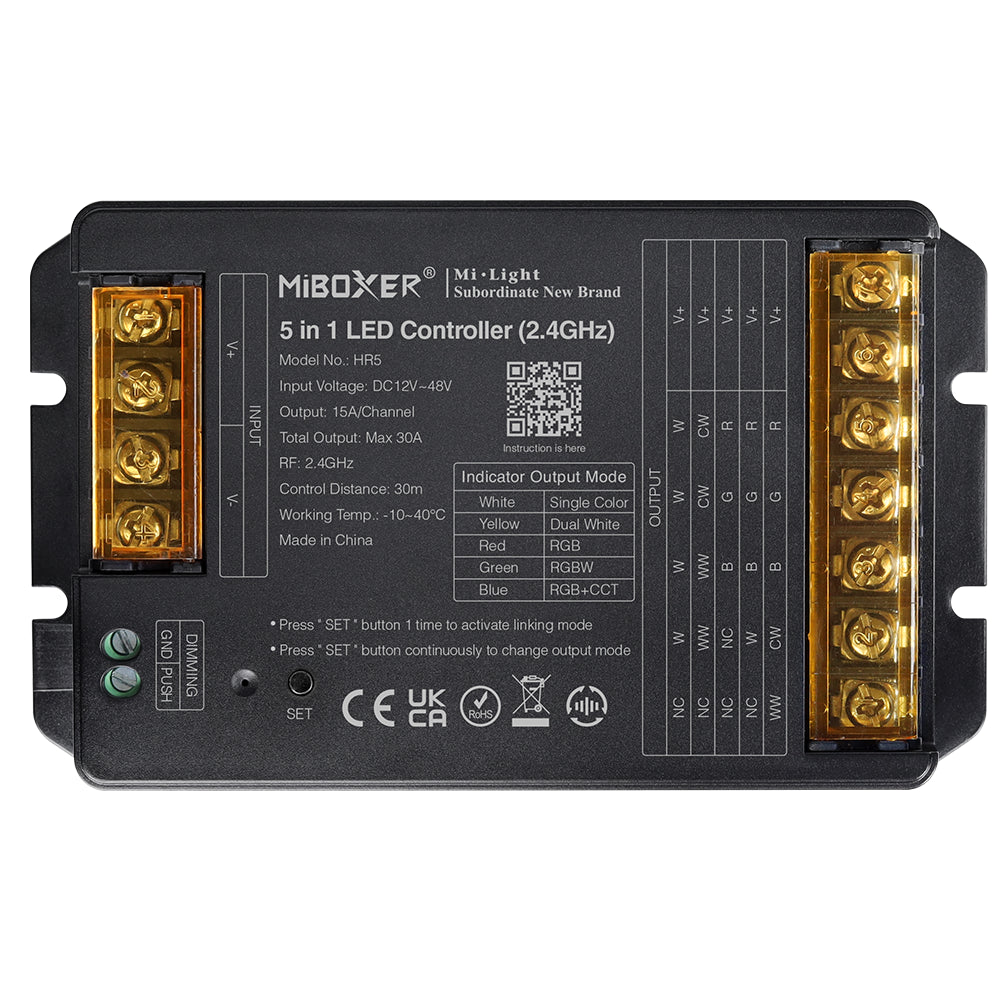

Miboxer HR5 - 5 in 1 LED Controller (2.4GHz) Output Max 30A
Key Features:
- Multiple Functions: Integrates five functions in one unit, including color temperature adjustment, brightness control, RGB color control, RGBW color control, and RGB+CCT control.
- 2.4GHz Wireless Control: Utilizes reliable 2.4GHz wireless technology for stable and interference-free communication with compatible LED lights.
- High Output Capacity: Supports a maximum output of 30A, making it suitable for controlling large-scale LED installations.
- User-Friendly Interface: Features intuitive controls for easy operation and adjustment of lighting settings.
- Wide Compatibility: Compatible with various types of LED strips, panels, and bulbs, providing versatility in lighting applications.
- Durable Construction: Built with high-quality materials to ensure durability and long-term reliability.
- Versatile Applications: Ideal for residential homes, commercial spaces, and entertainment venues where dynamic and customizable lighting effects are desired.
Applications:
- Residential: Perfect for creating personalized lighting atmospheres in living rooms, bedrooms, kitchens, and outdoor spaces.
- Commercial: Ideal for retail stores, restaurants, hotels, and bars to enhance ambiance and attract customers with vibrant lighting displays.
- Entertainment: Used in theaters, event venues, and nightclubs for dynamic stage lighting and special effects.
- Industrial: Suitable for warehouses and factories where efficient and durable lighting solutions are required.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | HR5 |
| Control Type | 2.4GHz RF Wireless |
| Input Voltage | DC 12V ~ 24V |
| Max Output Current | 6A × 5CH (Total Max 30A) |
| Output Type | Constant Voltage |

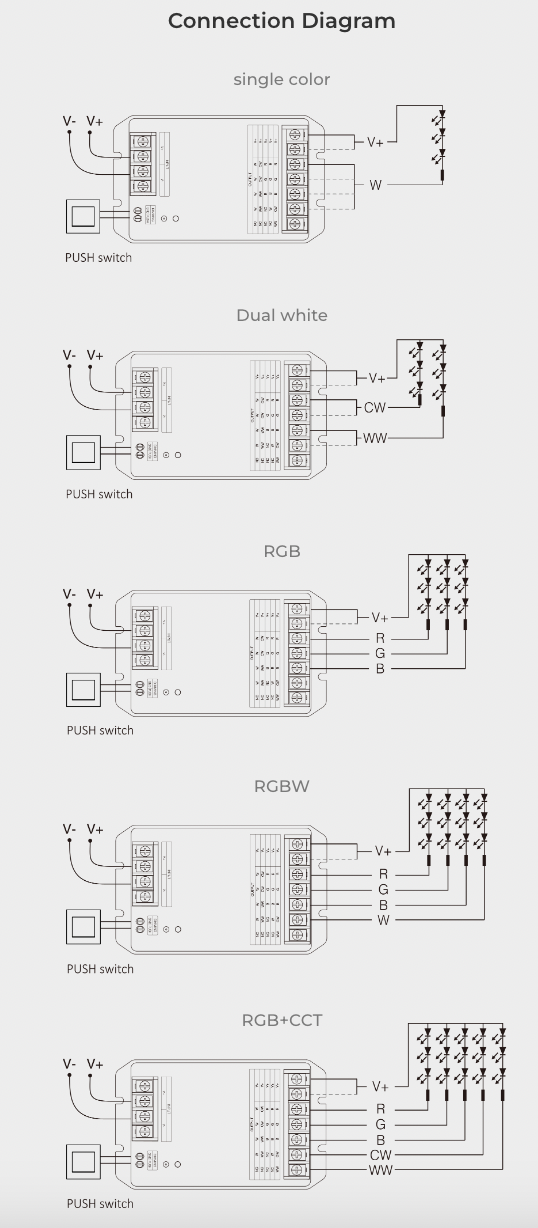

| Output Channels | 5 Channels (Compatible with RGB, RGBW, RGB+CCT, Dual White, Single Color) |
| Max Output Power | 360W (12V) / 720W (24V) |
| Wireless Control Distance | 30m (in open area) |
| Compatible Remotes | MiBoxer 2.4GHz Series Remotes (e.g., FUT089, FUT092, B8, etc.) |
| Dimming Range | 0.1% – 100% |
| Programs/Effects | Built-in dynamic lighting modes (varies by remote) |
| Protection | Short-circuit, Overload, Overheat |
| Operating Temperature | -20°C ~ 60°C |
| Dimensions | Approx. 124 × 38 × 27 mm |
| Certifications | CE, RoHS |
| Application | LED Strip Lights, Stretch Ceilings, Accent Lighting |
The HR5 5 in 1 LED Controller is an advanced and versatile device designed to provide comprehensive control over LED lighting systems with multiple functionalities integrated into one unit. This controller supports various lighting effects and adjustments, offering flexibility and customization for both residential and commercial applications.
The HR5 5 in 1 LED Controller offers exceptional versatility and performance for controlling LED lighting systems with multiple functionalities. Whether used in homes, businesses, or entertainment venues, it provides the flexibility to create dynamic lighting effects and enhance the overall ambiance of any space.
Manual Download:
