Key Features:
-
Dual-white (CCT) controller for a single stair step in the BS system
-
Input: DC 24 V; Output: 2-channel CCT, up to 1 A total
-
Ultra-compact 38×8×10 mm, IP20, –10~40 °C operating range
-
Plug-and-play with BS-TL T-cable and BS-L2 CCT LED strip
-
Works with BS64 2-Wire PLC Stair Light Master (BLE + 2.4 G)
Applications:
-
Step lighting in homes, hotels, theaters, and showrooms
-
Synchronized step effects (fade in/out, timed delays, night-light) when paired with BS64
-
Low-profile installations under treads or within slim channels
Technical Specifications:
| Parameter | Value |
|---|---|
| Product name | Stair Light Sub-device (Dual White Controller) |
| Model | BS-L2C |
| Input voltage | DC 24 V |
| Output (per channel) | 1 A / channel |
| Total output | Max 1 A (both channels combined) |
| Channels | 2 (CCT: warm + cool) |
| Working temperature | –10 ~ 40 °C |
| Ingress protection | IP20 |
| Dimensions | 38 × 8 × 10 mm |
| Weight | ≈ 1.5 g |

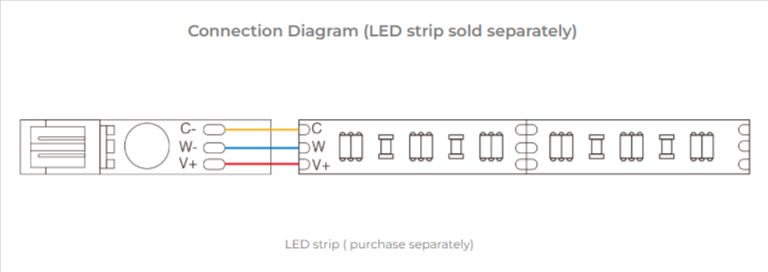

| Connections | To master via BS-TL T-cable; 2-channel output to CCT LED strip |
